Products

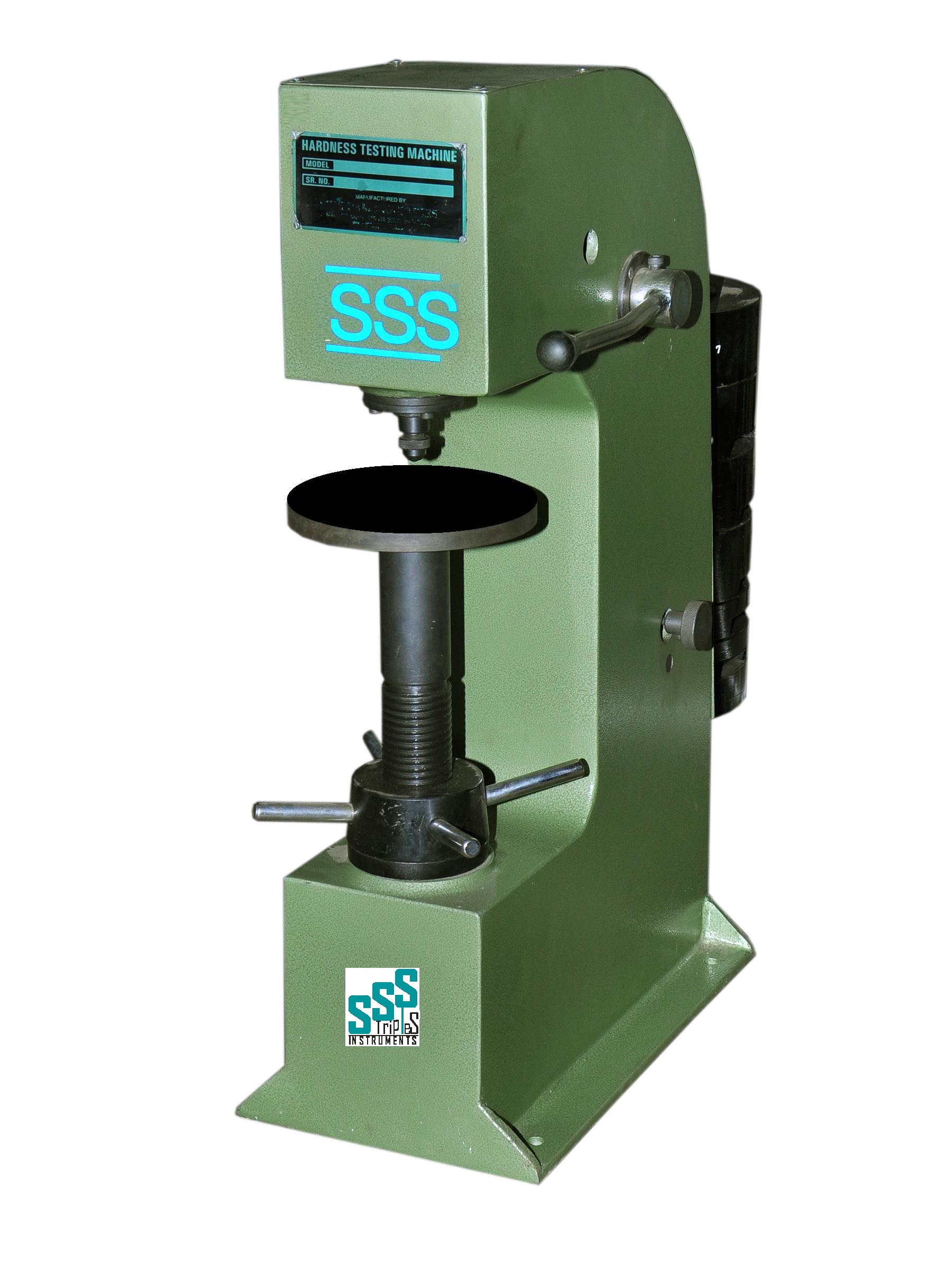

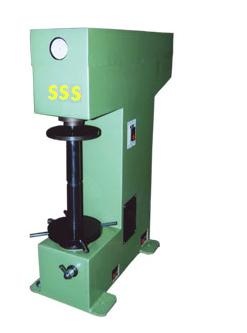

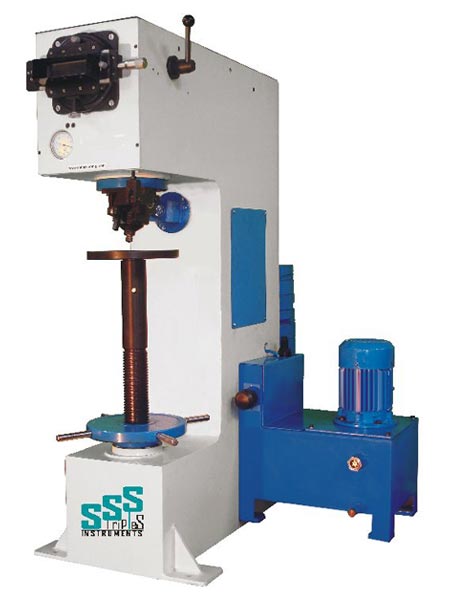

Brinell Hardness Testing Machine
Rate:Designed for testing the Brinell Hardness of metals and alloys, the Brinell Hardness Testing Machine is of vital importance in industrial sector. We bring for the high-grade Brinell Hardness Testing Machine for clients across the globe. We are named amidst the prominent Brinell Hardness Testing Machine Manufacturers, Exporters, and Suppliers in Maharashtra (India).
Technical Specifications of Brinell Hardness Testers
| MODEL | UNIT | SSS-B 3000 (J) | SSS-B 3000 (H) | SSS-B 3000 (O) |
|---|---|---|---|---|
| LOADS | -- | 500, 750, 1000, 1500, 2000, 2500, 3000 | 500 TO 3000 IN STAGES OF 250 | 500 TO 3000 IN STAGES OF 250 |
| INITIAL LOAD | KGF | NIL | 250 | NIL |
| MAX. TEST HIGHT. | MM. | 254 | 410 | 380 |
| DEPTH OF THROAT | MM. | 150 | 200 | 200 |
| MAX.DEPTH OF ELEVATION SCREW BELOW BASE | MM. | 180 | 180 | 180 |
| SIZE OF BASE | MM. | 255X495 | 370 X 670 | 370 X 670 |
| MACHINE HIGHT | MM. | 680 | 1127 | 1205 |
| NET WEIGHT | KG. | 205 | 450 | 505 |
| DRIVE MOTOR | HP | NIL | 0.33 | 0.33 |
| MAIN SUPPLY | V/cy/ph | NIL | 400-440/50/3 | 400-440/50/3 |
| OTHER FEATURE | -- | NIL | NIL | Direct Reading Optical Device |
Due to constant R&D specification are subject to change without notice.
Standard Accessories
| MODEL | SSS-B-3000(J) | SSS-B-3000(H) | SSS-B-3000(O) |
|---|---|---|---|
| Testing table 50mm dia. | 1 pc | Nil | Nil |
| Testing table 200 mm dia. | Nil | 1 pc | 1 pc |
| Testing table 70 mm ∅ with 'V' groove for round jobs-10 to 80 mm dia | 1 pc | 1 pc | 1 pc |
| Ball holder 10 mm | 1 pc | 1 pc | 1 pc |
| Test block HB-10/3000 | 1 pc | 1 pc | 1 pc |
| Brinell microscope | 1 pc | 1 pc | nill |
| Allen spanner | 1set | 1set | 1set |
| Telecopic cover for elevating screw protection | Nill | 1set | 1set |
| Instruction manual | 1 book | 1 book | 1 book |
