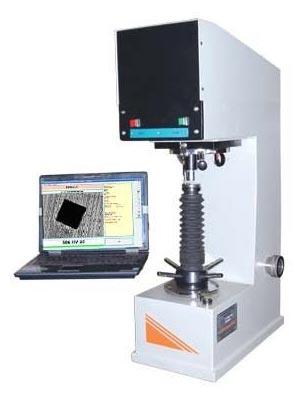

We manufacture and supply Vickers Hardness Testing Machine in India. Our Vickers Hardness Testing Machine is simple & accurate in design. Vickers Hardness Testing Machine is suitable for measuring the hardness of precision metallic parts with wide testing range - from soft to hard & accurate results are widely acclaimed. Our Vickers Hardness Testing Machine strictly conforms to IS:1754: 2002 & ISO 6507 - 2: 1997.

Features
Wide testing range, from soft metal such as lead, up to the hardest, like hardened steel Tiny indentation allows testing of precision finished parts. Thin sheet metal is perfectly tested because applied load is very small. Same hardness number is obtained on the same specimen, regardless of the load applied Motorized loading and unloading cycle Built - in projection screen to get accurate result.

Construction
To accommodate the high precision loading system & an optical projection screen the machine frame is designed sturdy. Specimen is to be placed on testing table. The test cycle is fully automatic. The accurate load is applied on a diamond penetration by means of a lever & weights. The load is removed automatically after a specific lapse of time. The objective is indexed with the test piece & the diamond indentation is projected on the measuring screen. The diagonals of the indentation can be measuring by means of the micrometer screw of the projection screen.
